From Wikipedia:

MeshCore is an open-source mesh networking protocol and software platform designed for off-grid, low-power text communication using LoRa (Long Range) radio technology. The system enables decentralized, multi-hop wireless messaging without reliance on cellular networks or internet infrastructure.

Use cases include emergency and disaster communications, outdoor and remote activities, [...] and experimental and educational deployments of low-power mesh networking.

[It] is designed to [...] operate in unlicensed ISM frequency bands such as 868 MHz and 915 MHz, depending on regional regulations.

The idea is that each person has a small companion device C paired to their cellphone via Bluetooth, and via that device, they can text each other or post public messages using the 915 MHz band, all without a special license. The signal can travel directly between companion devices if they are close enough, or via a series of repeaters R to extend coverage.

• The MeshCore app downloaded to your cellphone or computer.
• A device with the MeshCore companion firmware paired to your cellphone.
• If needed, a device with the MeshCore repeater firmware to extend messaging range.
• Each person who wants to send messages needs their own companion device.

• Search for “MeshCore” by “Liam Cottle” on Google Play or the Apple App Store.
• Alternatively, download for Windows, MacOS and Web from https://meshcore.io.
• You should save an offline copy of the software so it’s available without the internet.

• Recommended devices are listed at https://meshcore.io
• Alternatively, supported devices listed on https://meshcore.io/flasher can be purchased online from overseas suppliers such as AliExpress or SeeedStudio, or in Canada from Robot Shop.

sudo usermod -a -G dialout USER

If you already have Meshcore installed, download your current settings:

• Open the MeshCore app (Android, iOS, Web App, NodeJS, Python)
• Navigate to the Settings (the gear in the top right corner)
• Scroll down to the “Extra Tools” section and select “Export Config”
• “Select All” and click on the check mark in the top right corner to save the “.json” file to your phone.

Flash the Meshcore Firmware:

• Connect the companion device to your computer via USB.
• Go to https://meshcore.io/flasher (using a Chromium Browser).
• Select your device
• Select Companion Bluetooth
• Select Enter DFU Mode
• Select Erase Flash
• Select Flash

To re-load your previous config file:

• Open the MeshCore App
• Connect to the companion device, but it probably had a different bluetooth name now
• The PIN might be listed on your companion's screen
• Skip Setup
• Navigate to the Settings (the gear in the top right corner)
• Scroll down to the “Extra Tools” section and select “Import Config”
• Click on “Select File”
• Select the “*.json” file
• “Select All” and click on the check mark in the top right corner.

See Scott Baker's article for more information.

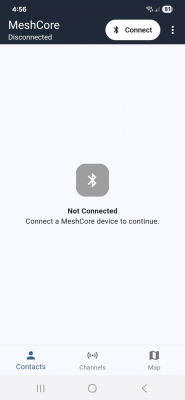

• Turn on your device.
• Open the MeshCore App.

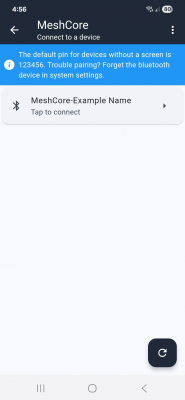

• Tap the “Connect” button in the top right corner.
• Tap the “MeshCore-XXXX” device that matches the name shown on your MeshCore device’s screen.
• Enter the PIN displayed on your MeshCore device’s screen.
• If your device doesn’t have a screen, the default pin is 123456.

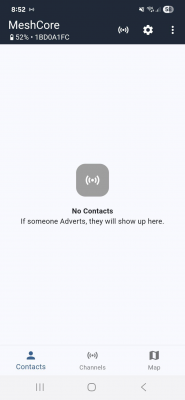

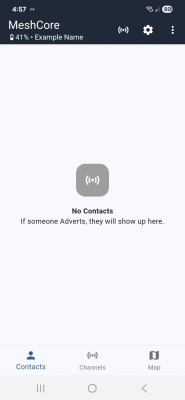

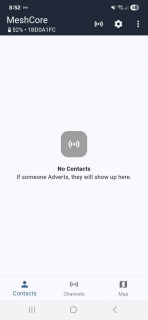

• Once pairing is successful, you’ll be taken to the main screen.

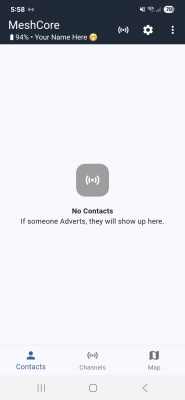

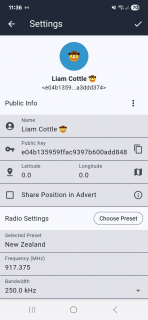

You should now rename your MeshCore node. The name you choose will be seen by other users on the MeshCore network.

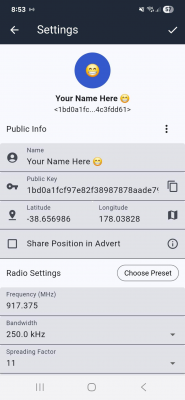

• Tap the settings icon in the top right corner.
• Tap the name field, backspace until it’s empty, then type your name.
• After entering your name, tap the tick icon in the top right to save it.

MeshCore can be used all over the world. Different countries have different regulations on which radio frequencies can be used for public, license free communication. To ensure your node is operating legally, please make sure to select radio settings that are compliant in your country.

The MeshCore app provides a list of radio presets that have been suggested by the community for use in specific countries/regions.

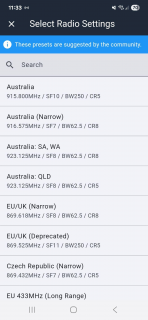

To configure the radio settings for your MeshCore node:

• Tap the settings icon in the top right corner.
• Tap the “Choose Preset” button in the radio settings section.
• Tap the radio settings that match the name of your country/region.
• You will be taken back to the settings screen.
• Tap the tick icon in the top right corner to save your settings.

Messages sent to the Public channel can be seen by anyone on the MeshCore network. They are repeated across the mesh by all repeaters that hear them. Other mesh nodes in range of you or a repeater that rebroadcast the message, should receive it.

The public channel can be used as a large group chat for general conversation amongst all users on the mesh. It could also be used to send emergency alerts.

It’s not recommended to send confidential information on the public channel as anyone can read these messages.

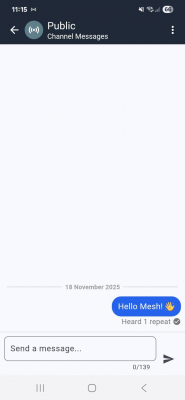

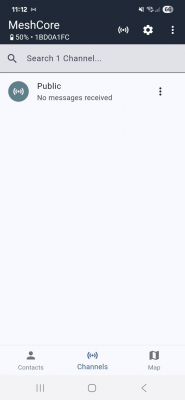

To send a message:

• Tap the channels tab at the bottom of the screen.
• Tap the “Public” channel.
• Type a message and press the send icon.

Before you can send private, encrypted, direct messages to someone, you and the person you send the message to must both add each other as contacts. If the other person doesn’t also add you as a contact, your messages to them will fail to deliver.

Contacts can be added in multiple ways:

• Privately in person by scanning QR Codes.
• Publicly via the mesh by sending and receiving an “Advert”.

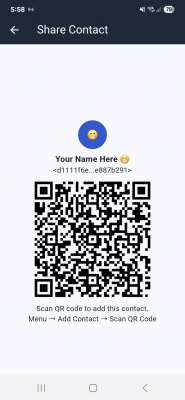

To share your contact details privately via QR Code:

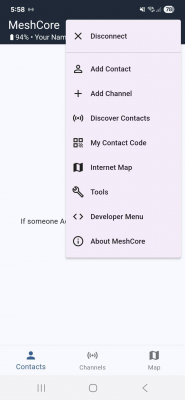

• Tap the 3 dot menu in the top right.
• Tap the “My Contact Code” menu item.
• Show the QR Code to the other person.

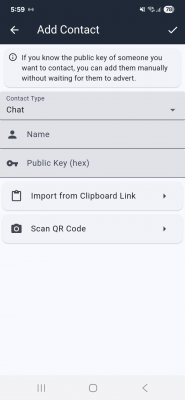

• Tap the 3 dot menu in the top right.
• Tap the “Add Contact” menu item.
• Tap the “Scan QR Code” button.
• If requested, grant access to the device’s camera.
• Point the device’s camera at the QR Code.
• The contact details will be automatically added to your contacts list.

If you are unable to privately share your contact details in person via a QR Code, you may alternatively share them publicly to everyone on the mesh by sending an “Advert”.

An advert is an unencrypted packet transmitted by your MeshCore node. It includes your node name, node type, public identity key and a cryptographic signature to prevent anyone from tampering with the information as it’s sent across the mesh.

You can send two types of adverts:

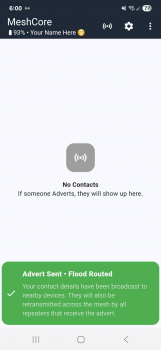

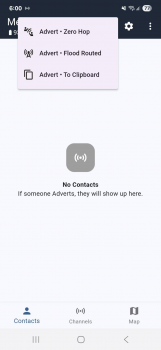

To share your contact details publicly via the mesh:

• Tap the signal icon in the top right.
• Tap the “Advert (Zero Hop)” or “Advert (Flood Routed)” menu item.
• Your contact details will be transmitted to the mesh.

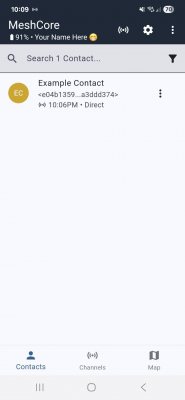

Once you’ve added a contact, and that contact has added you back, you can send private messages to each other across the mesh. These messages are encrypted and only the intended recipient can read the message contents.

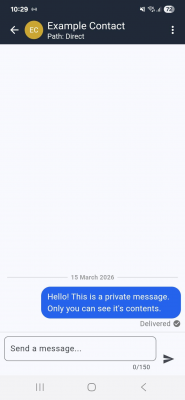

To send a private message:

• Tap the contact you want to send a message to.
• Type a message and press the send icon.
• The app will try several times to deliver your message to the recipient.
• If it’s successful, it will show “Delivered” with a check mark.
• If an automatic acknowledgement from the recipient is not received after some time, the message will turn red and show as “Failed”.

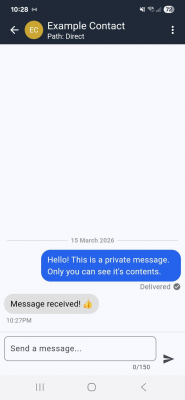

• When messages are received, they will show up in the conversation viewer.

When you send a direct message to someone, it’s possible that it may not go through after several automatic attempts. This can happen for many different reasons, such as:

• Being out of range of the intended recipient.
• There are no repeaters in between you and the intended recipient.
• The intended recipient’s radio might be turned off.
• There might be interference on the radio spectrum.

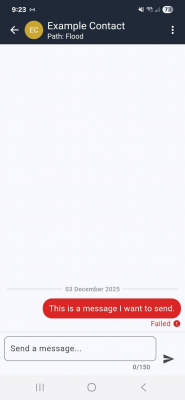

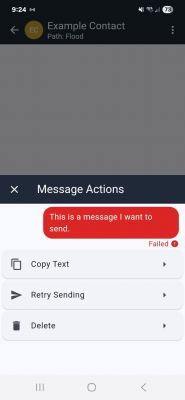

To try sending the failed message again:

• Long press the failed message shown in red.
• Tap the “Retry Sending” button shown in the message actions popup.
• Your message will try sending again.

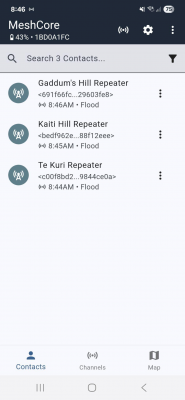

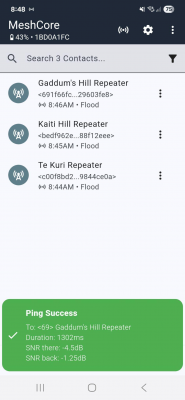

To check the signal strength to and from a nearby repeater, you can run a ping test.

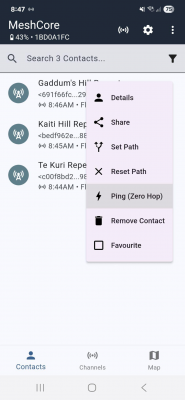

• Tap the 3 dot menu icon next to a repeater contact.
• Tap the “Ping (Zero Hop)” menu item.
• A green popup will show signal strengths if successful.
• A red popup will show “Timeout” if your companion didn’t hear the repeater.

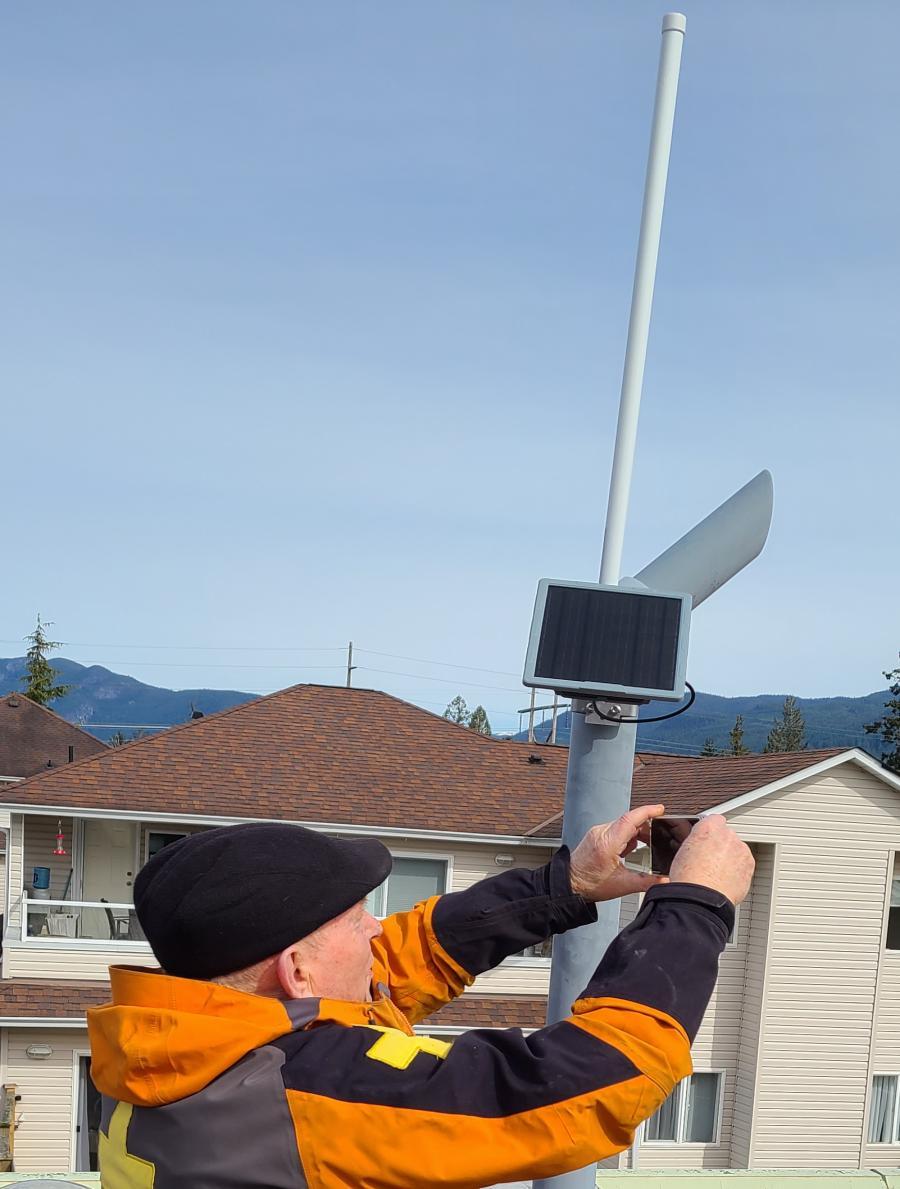

• Install a repeater like the SenseCAP Solar Node P1-Pro from seeed studio or RobotShop
• Use an antenna like this one, this one or one of these.

If you already have Meshcore installed (but not the bootloader), download your current settings:

• Go to https://config.meshcore.io/
• Connect your device to your computer with a USB cable.
• Click on Connect
• Click on Export
• Click on Disconnect
• Locate the .json file (probably in your Downloads folder).

Download the bootloader:

• Go to https://meshcore.io/flasher
• Select your device
• Select Repeater (or Room Server)
• Click on Download
• Select the *bootloader-x.x.x-OTAFIXx.x.uf2 file
• Locate the .uf2 file (probably in your Downloads folder).

Copy the bootloader over to your device:

• Connect your device to your computer with a USB cable.
• Double click on the reset button.
• Open the drive that just mounted on your computer
• Copy the .uf2 file to the drive.
• The drive may close on its own right away. This is normal.

Flash the Meshcore Firmware:

• Go to https://meshcore.io/flasher
• Select your device
• Select Repeater (or Room Server)
• Select Enter DFU Mode
• Select Erase Flash
• Select Flash

Re-upload your settings:

• Select Configure via USB from the previous page, or navigate to https://config.meshcore.io/
• Select Connect
• Select Import
• Select your .json file
• Scroll down to the Access section and retype your New Admin password (it doesn't remember it)
• Scroll down and select Save settings
• Select Disconnect

Setup the Over the Air (OTA) update app (first time only):

• Download the “nRF Device Firmware Update” app by “Nordic Semiconductor ASA” (Android, Apple)
• Open the DFU app
• In the settings, check Packet receipt notification

Perform an OTA update:

• Using your phone's browser, navigate to https://meshcore.io/flasher
  • Select your device
  • Select Repeater (or Room Server)
  • Select Download
  • Select the firmware zip file (not the bootloader file)
• Using the Meshcore app, login to your repeater (or room server) using the admin password.
  • For Room Servers: go to Remote Management
  • Go to the Command Line
  • Type start ota, you should get a message that says: OK - mac: xx:xx:xx:xx:xx:xx
• Open the DFU app
  • Under File click Select to chose the firmware .zip file
  • Under Device click Select and chose the device that has DFU in the name. If there are no device with DFU in the name select the device with OTA in the name.
  • Under Progress click Start
  • If you selected a device with OTA, the process will fail at DFU initialization. Not to worry, go back to the previous step and now you should be able to select a device with DFU in the name.

See Scott Baker's article for more information.
